Product Summary
The 95-21SYGC/S530-E2 SMD LED is much smaller than leaded components. Besides, light weight makes them ideal for miniature applications. Furthermore by automation assembly machines the accuracy is anticipated.
Parametrics
Absolute maximum ratings: (1)Reverse Voltage, VR: 5 V; (2)Forward Current, IF: 25 mA; (3)Peak Forward Current(Duty 1/10 @1KHz), IFP: 60 mA; (4)Power Dissipation, Pd: 60 mW; (5)Electrostatic Discharge(HBM), ESD: 2000 V; (6)Operating Temperature, Topr: -40 ~ +85 ℃ ; (7)Storage Temperature, Tstg: -40 ~ +100 ℃ ; (8)Soldering Temperature, Tsol: Reflow Soldering : 260 ℃ for 10 sec; Hand Soldering : 350 ℃ for 3 sec.
Features
Features: (1)Package in 12mm tape on 7"diameter reels; (2)Compatible with automatic placement equipment.; (3)EIA Std. package; (4)Mono-color type; (5)Pb-free; (6)The product itself will remain within RoHS compliant version.

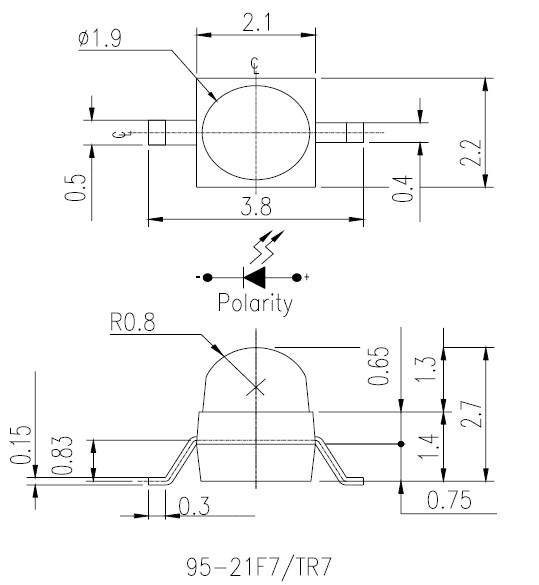

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

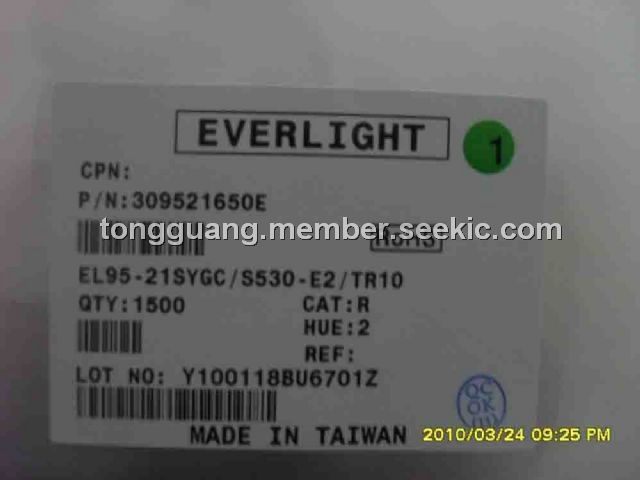

 95-21SYGC/S530-E2/TR10 |
Everlight |
Standard LED - SMD Super Yellow Green |
Data Sheet |
|
|
||||||||||||||
 |
95-21SYGC/S530-E2/TR7 |
Everlight |
Standard LED - SMD 1.9mm LED |
Data Sheet |
|
|
||||||||||||||
 |
95-21SYGC/S530-E2/TR9 |
Everlight |
Standard LED - SMD Super Yellow Green |
Data Sheet |
|
|
||||||||||||||
