Product Summary

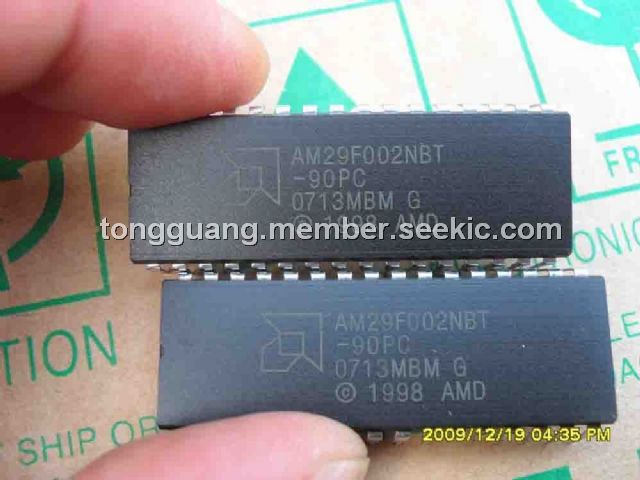

The AM29F002NBT-90PC is a 2 Mbit, 5.0 volt-only Flash memory organized as 262,144 bytes. The data appears on DQ7–DQ0. The device is offered in 32-pin PLCC, 32-pin TSOP, and 32-pin PDIP packages. It is designed to be programmed in-system with the standard system 5.0 volt VCC supply. No VPP is required for write or erase operations. The AM29F002NBT-90PC can also be programmed in standard EPROM programmers.
Parametrics
Absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground: VCC: –2.0 V to +7.0 V; A9, OE#, and RESET#: –2.0 V to +12.5 V; All other pins : –0.5 V to +7.0 V; (4)Output Short Circuit Current: 200 mA.
Features
Features: (1)Single power supply operation: 5.0 Volt-only operation for read, erase, and program operations; Minimizes system level requirements; (2)Manufactured on 0.32 μm process technology: Compatible with 0.5 μm Am29F002 device; (3)High performance: Access times as fast as 55 ns; (4)Low power consumption (typical values at 5 MHz): 1 μA standby mode current; 20 mA read current; 30 mA program/erase current; (5)Compatibility with JEDEC standards: Pinout and software compatible with single-power supply Flash; Superior inadvertent write protection; (6)Data# Polling and toggle bits: Provides a software method of detecting program or erase operation completion; (7)Erase Suspend/Erase Resume: Suspends an erase operation to read data from, or program data to, a sector that is not being erased, then resumes the erase operation.

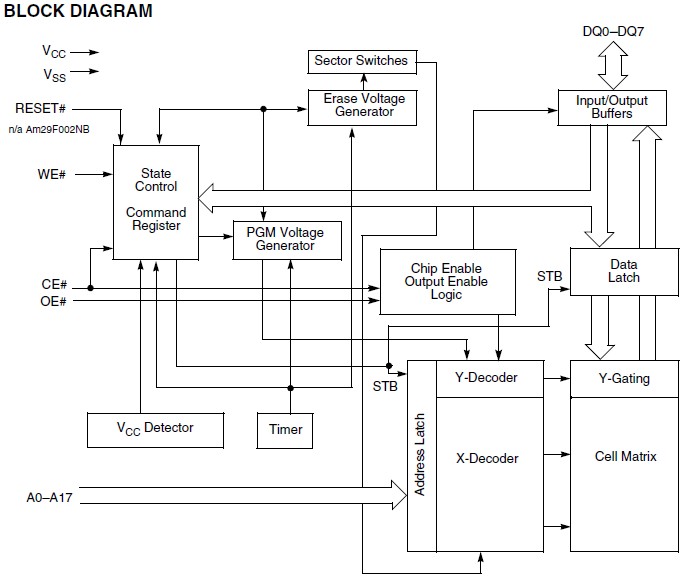

Diagrams
 |
