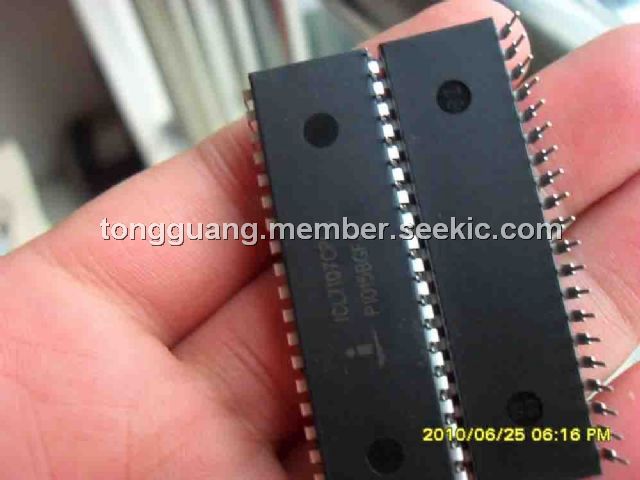

ICL7107

A/D converter, low power dissipation, 1pA typical input current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.70~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.70~2.00

PartNumber:: ICL7107

Brand:: Intersil Corporation - Intersil | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. james's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-05-03

From Other Seller

Part Number:ICL7107
US $0.70 - 2.00
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ICL7107 is a high performance, low power, 3x1/2 digit A/D converter included seven segment decoders, display drivers, a reference, and a clock. The device will directly drive an instrument size light emitting diode (LED) display. During signal integrate, the auto-zero loop is opened, the internal short is removed, and the internal input high and low are connected to the external pins. The ICL7107 then integrates the differential voltage between IN HI and IN LO for a fixed time. This differential voltage can be within a wide common mode range: up to 1V from either supply.

Parametrics

Absolute maximum ratings: (1)Supply Voltage, ICL7107, V+ to GND:6V; ICL7107, V- to GND:-9V; (2)Analog Input Voltage (Either Input): V+ to V-; (3)Reference Input Voltage (Either Input):V+ to V-; (4)Clock Input, ICL7107:GND to V+; (5)Temperature Range:0℃ to 70℃; (6)Maximum Junction Temperature:150℃; (7)Maximum Storage Temperature Range:-65℃ to 150℃; (8)Maximum Lead Temperature (Soldering 10s):300℃.

Features

Features:(1)guaranteed zero reading for 0V input on all scales; (2)true polarity at zero for precise null detection; (3)1pA typical input current; (4)true differential input and reference, direct display drive; (5)low noise - less than 15μVp-p; (6)on chip clock and reference; (7)low power dissipation - typically less than 10mW; (8)no additional active circuits required; (9)enhanced display stability; (10)Pb-free plus anneal available (RoHS compliant).
