Product Summary

The AT29C010A-70P is a 5-volt-only in-system Flash programmable and erasable read only memory(PEROM). Its 1 megabit of memory is organized as 131,072 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 70 ns with power dissipation of just 275 mW over the commercial temperature range. When the device is deselected, the CMOS standby current is less than 100 mA. The device endurance is such that any sector can typically be written to in excess of 10,000 times.

Parametrics

Absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃ ; (2)Storage Temperature: -65℃ to +150℃ ; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

Features: (1)Fast Read Access Time - 70 ns; (2)5-Volt-Only Reprogramming ; (3)Sector Program Operation: Single Cycle Reprogram (Erase and Program); 1024 Sectors (128 bytes/sector); internal Address and Data Latches for 128-Bytes ; (4)Two 8 KB Boot Blocks with Lockout ; (5)Internal Program Control and Timer ; (6)Hardware and Software Data Protection ; (7)Fast Sector Program Cycle Time - 10 ms ; (8)DATA Polling for End of Program Detection ; (9)Low Power Dissipation: 50 mA Active Current; 100 uA CMOS Standby Current ; (10)Typical Endurance > 10,000 Cycles ; (11)Single 5V ±10% Supply ; (12)CMOS and TTL Compatible Inputs and Outputs ; (13)Commercial and Industrial Temperature Ranges.

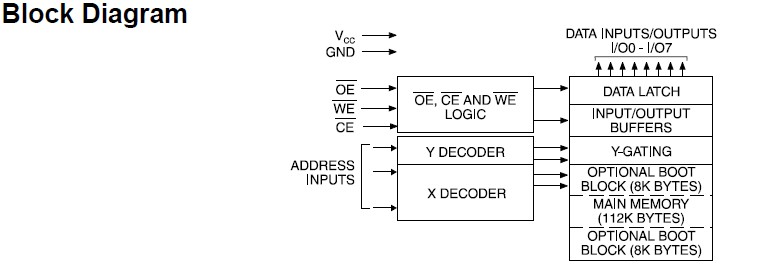

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AT29C010A-70PC
AT29C010A-70PC
Atmel
Flash 1M (128kx8)
Data Sheet
Negotiable
AT29C010A-70PI
AT29C010A-70PI
Atmel
Flash 1M (128kx8)
Data Sheet
Negotiable
