Product Summary

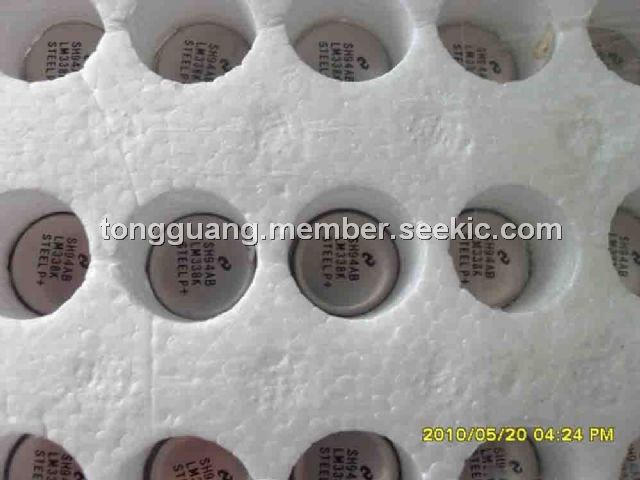

The LM338K is designed as one kind of three-terminal 5-A adjustable voltage regulator device that is exceptionally easy to use and require only 2 resistors to set the output voltage. And this device is packaged in standard steel TO-3 transistor packages.

Parametrics

Absolute maximum ratings: (1)Power Dissipation: Internally LimitedW;(2)Input-Output Voltage DIfferential: 35V;(3)Operating Junction Temperature Range: 0℃ to 125℃;(4)Storage Temperature Range: -65℃ to 150℃;(5)Lead Temperature (Soldering, 10 seconds): 300℃.

Features

Features: (1)guaranteed 7A peak output current; (2)guaranteed 5A output current; (3)adjustable output down to 1.2V; (4)line regulation typically 0.005% / V; (5)load regulation typically 0.1%; (6)guaranteed thermal regulation current limit constant with temperature; (7)standard 3-lead transistor package.

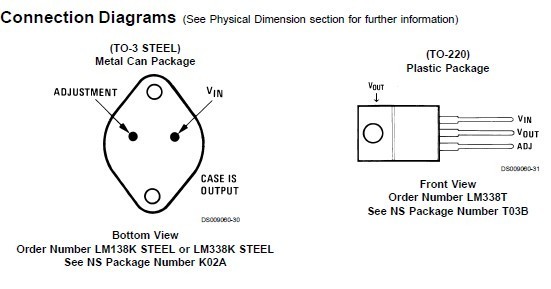

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM338K
LM338K
STMicroelectronics
Linear Regulators - Standard 1.2-32V Adj Positive
Data Sheet
0-1: $5.69
1-10: $4.70
10-100: $4.21
100-250: $3.88
LM338K STEEL
LM338K STEEL
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
Negotiable
LM338K STEEL/NOPB
LM338K STEEL/NOPB
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
Negotiable
LM338K/STEEL
LM338K/STEEL

IC REG LDO ADJ 5A TO-3
Data Sheet
0-1: $30.41
1-10: $28.44
10-25: $26.30
25-100: $24.66
100-250: $23.02
250-500: $21.87
500-1000: $21.04
1000-2500: $20.39
2500-5000: $19.73
LM338KSTEEL
LM338KSTEEL
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-50: $26.30
50-100: $24.66
100-250: $23.02
LM338KSTEEL/NOPB
LM338KSTEEL/NOPB
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-1: $31.24
1-25: $27.29
25-100: $25.48
100-250: $23.84
