Product Summary

The MICROSMD010F-2 is a polyswitch resettable device from Tyco electronics. It is used as over curent protection device.

Parametrics

Electrical Characteristics: (1)Vmax (V) = 30; (2)Imax (A) = 10; (3)IH (Room Temperature) (A) = 0.1; (4)IT (Room Temperature) (A) = 0.25; (5)Rmin (Ω) = 2.10; (6)R1 Max [Post Trip] (Ω) = 15.00.

Features

Features: (1)Construction: Surface Mount; (2)Family Name: microSMD; (3)Form Factor (inches): 1210; (4)Form Factor (mm): 3225; (5)RoHS/ELV Compliance: RoHS compliant, ELV compliant; (6)Lead Free Solder Processes: Reflow solder capable to 245℃, Reflow solder capable to 260℃; (7)RoHS/ELV Compliance History: Always was RoHS compliant; (8)Operating Temperature (Max.) (℃): 85; (9)Application: Surface Mount; (10)Packaging Method: Tape & Reel.

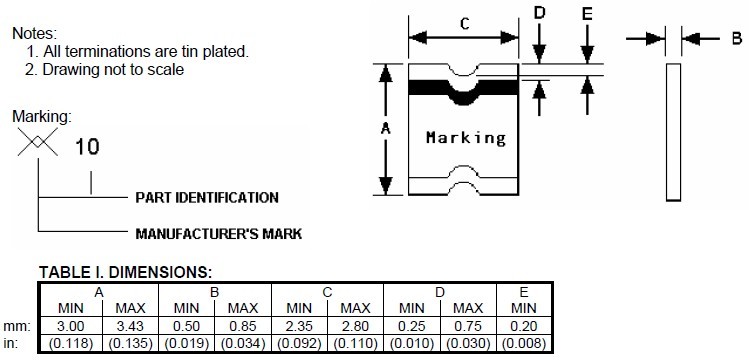

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MICROSMD010F-2
MICROSMD010F-2
TE Connectivity / Raychem
PTC Resettable Fuses .10A 30V 10A Imax
Data Sheet
0-1: $0.22
1-10: $0.21
10-100: $0.21
100-500: $0.15
