Product Summary

The G2R-1-E is a power relay for a variety of purposes with various models.

Parametrics

Characteristics: (1)Contact resistance: 30 mΩ max. (high-capacity type: 100 mΩ max.) ; (2)Operate (set) time: 15 ms max. ; (3)Release (reset) time: AC: 10 ms max.; DC: 5 ms max. (w/built-in diode: 20 ms max.) ; (4)Max. operating frequency: Mechanical: 18,000 operations/hr; Electrical: 1,800 operations/hr (under rated load) ; (5)Insulation resistance: 1,000 MΩ min. (at 500 VDC) ; (6)Dielectric strength: 5,000 VAC, 50/60 Hz for 1 min between coil and contacts; 1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity ; (7)Vibration resistance: Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude); malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) ; (8)Shock resistance: Destruction: 1,000 m/s2; Malfunction: 200 m/s2 when energized; 100m/s2 when no energized ; (9)Endurance: Mechanical: AC coil: 10,000,000 operations min; DC coil: 20,000,000 operations min. (at 18,000 operations/hr); Electrical: 100,000 operations min. (at 1,800 operations/hr under rated load) ; (10)Ambient temperature: Operating: -40℃ to 70℃ (with no icing) ; (11)Ambient humidity: Operating: 5% to 85% ; (12)Weight: Approx. 17 g (plug-in terminal: approx. 20 g).

Features

Features: (1)Conforms to VDE0435 (VDE approval: C250 insulation grade), UL508, CSA22.2, SEV, SEMKO; (2)Meets VDE0700 requirements for household products according to VDE0110; (3)Clearance and creepage distance: 8 mm / 8 m; (4)Models with CTI250 material available; (5)High-sensitivity (360 mW) and high-capacity (16 A) types available; (6)Double-winding latching type available; (7)Plug-in with test button and quick-connect terminals available; (8)Highly functional socket available.

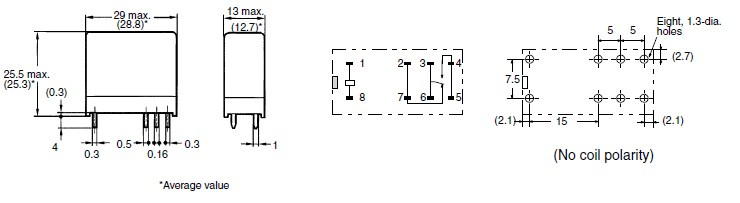

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
G2R-1-E AC12
G2R-1-E AC12
Omron Electronics
General Purpose / Industrial Relays SPDT 16A 12VAC Thru-Hole 65 Ohm
Data Sheet
0-1: $5.83
1-25: $5.47
25-50: $5.34
50-100: $5.06
G2R-1-E DC100
G2R-1-E DC100
Omron Electronics
General Purpose / Industrial Relays SPDT 16A 100VDC Thru-Hole 18.86K Ohm
Data Sheet
0-61: $5.31
61-100: $4.91
100-200: $4.55
200-500: $4.25
G2R-1-E DC9
G2R-1-E DC9
Omron Electronics
General Purpose / Industrial Relays SPDT 16A Thru-Hole 9VDC
Data Sheet
0-1: $3.44
1-25: $3.13
25-50: $2.86
50-100: $2.64
G2R-1-E-AC110
G2R-1-E-AC110
Omron Electronics
General Purpose / Industrial Relays SPDT 16A Thru-Hole 110VAC 4.6K Ohm
Data Sheet
0-61: $5.27
61-100: $4.86
100-200: $4.51
200-500: $4.21
G2R-1-E-AC120
G2R-1-E-AC120

RELAY GEN PURPOSE SPDT 16A 120V
Data Sheet
0-1: $5.83
1-25: $5.24
25-50: $4.66
50-100: $4.19
100-250: $3.96
250-500: $3.49
500-1000: $3.15
G2R-1-E-AC24
G2R-1-E-AC24
Omron Electronics
General Purpose / Industrial Relays SPDT 16A Thru-Hole 24VAC 260 Ohm
Data Sheet
0-1: $5.20
1-25: $4.72
25-50: $4.33
50-100: $4.00
G2R-1-E-ASI DC18
G2R-1-E-ASI DC18
Omron Electronics
General Purpose / Industrial Relays SPDT 16A Thru-Hole 18VDC
Data Sheet
0-1: $4.71
1-25: $4.28
25-50: $3.92
50-100: $3.62
G2R-1-E-ASI-DC12
G2R-1-E-ASI-DC12
Omron Electronics
General Purpose / Industrial Relays SPDT 16A Thru-Hole 12VDC 275 Ohm
Data Sheet
0-1: $5.02
1-25: $4.57
25-50: $4.18
50-100: $3.86
