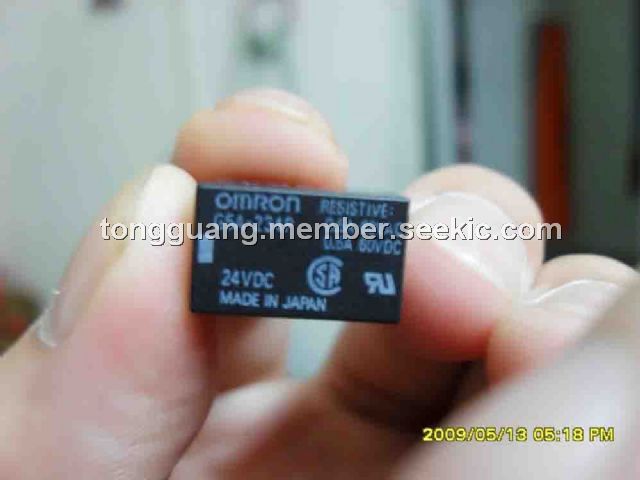

The G5A-234P is a low signal relay from Omron Electronics LLC.
Parametrics
Absolute maximum ratings: (1)Rated load: 0.50 A at 30 VAC, 1 A at 30 VDC(Resistive load (p.f. = 1)), 0.10 A at 30 VAC, 0.20 A at 30 VDC(Inductive load (p.f. = 0.4) (L/R = 7 ms); (2)Contact material: Ag (Au clad); (3)Carry current: 1A; (4)Max. operating voltage: 125VAC, 125VDC; (5)Max. operating current: 1 A (AC) 1 A (DC)(Resistive load (p.f. = 1)), 0.50 A (AC) 0.50 A (DC)(Inductive load (p.f. = 0.4) (L/R = 7 ms); (6)Max. switching capacity 37.50 VA, 33 W(Resistive load (p.f. = 1)), 12.50 VA 11 W(Inductive load (p.f. = 0.4) (L/R = 7 ms); (7)Min. permissible load: 10μA, 10mVDC.
Features
Features: (1)Subminiature 8.40 H x 9.90 W x 16 Lmm (0.33 H x 0.38 W x 0.63 L in); (2)Unique moving magnet armature reduces relay size,magnetic interference, and contact bounce time; (3)Low nominal power consumption (200 mW); (4)Bifurcated crossbar contact assures highly reliable switching of loads as low as 10 mVDC, 0.1 mA (reference value).; (5)Automatic flow or dip soldering possible; (6)Available in standard, high-sensitivity, high-dielectric (FCC part 68), low thermoelectromotive force, and ultrasonic cleaning versions; (7)Highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock; (8)Single or double coil winding types available.

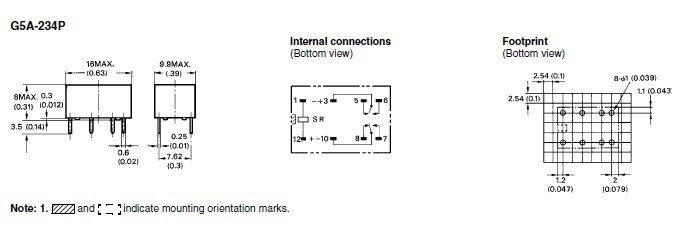

Diagrams
