Product Summary
The AM27C512-90DC is a 512-Kbit, ultraviolet erasable programmable read-only memory. It is organized as 64K words by 8 bits per word, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. Products are available in windowed ceramic DIP packages, as well as plastic one time programmable (OTP) PDIP and PLCC packages.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: OTP Products: –65℃ to +125℃; All Other Products: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to VSS: All pins except A9, VPP, VCC: –0.6 V to VCC + 0.6 V; A9 and VPP: –0.6 V to 13.5 V; VCC: –0.6 V to 7.0 V.
Features
Features: (1)Fast access time: Speed options as fast as 55 ns; (2)Low power consumption: 20 μA typical CMOS standby current; (3)JEDEC-approved pinout; (4)Single +5 V power supply; (5)±10% power supply tolerance standard; (6)100% Flashrite programming: Typical programming time of 8 seconds; (7)Latch-up protected to 100 mA from –1 V to VCC + 1 V; (8)High noise immunity; (9)Versatile features for simple interfacing: Both CMOS and TTL input/output compatibility; Two line control functions; (10)Standard 28-piDIP, PDIP, and 32-piPLCC packages.

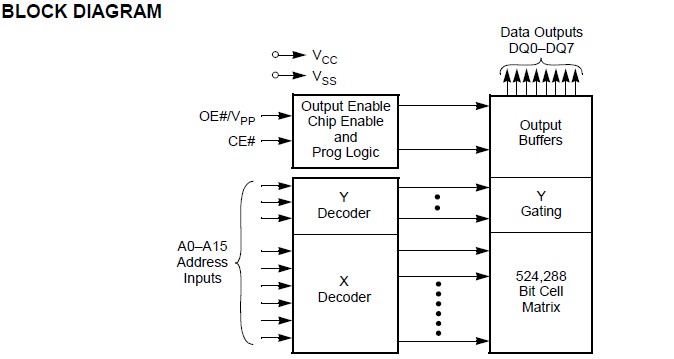

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AM27C512-90DC |
Other |
|
Data Sheet |
Negotiable |
|
||||
